R65 Dual Color LED Micro Bar

Product Name

R65 Dual Color LED Micro Bar

Product No

LS-SB01

Product Description

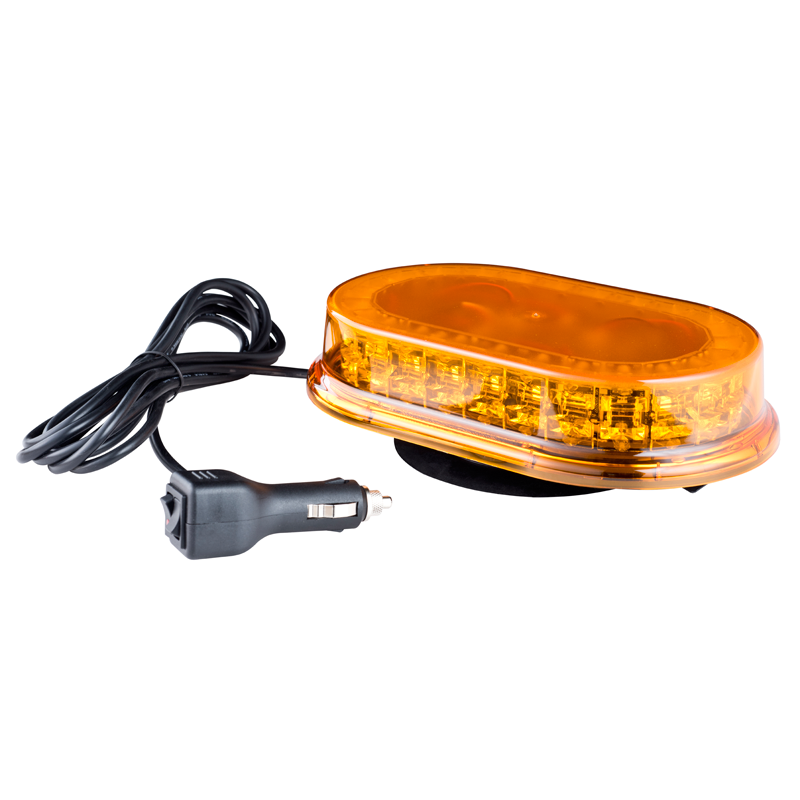

LS-SB01 LED Micro Bar is built with high brightness 3watt x 24 LEDs. It provides superior 360 degree output. No dead corners.This compact size allows for easy storage in all vehicles.

Features

    • Self flasher
    • IP67
    • High brightness and no light fade
    • 360 degree off-angle
    • Exclusive patent design
    • Patent no. 002763540(EU) / D813,073(US)

Approvals

ECE R10 . ECE R65 Class I . SAE Class I


Specification

    • Voltage:12 / 24 VDC
    • Current:6 Amps Max.
    • LED: 3W, 24 pcs(single color) / 3W, 48 pcs(dual color)
    • Patterns:26(single color) / 13 & 9(dual color)
    • Fixed form:Magnet with cigar plug and screw fixing
    • Functions:Pattern, Hi/Low power, synchrounous switch
    • Colors:R10-Red / Amber / Blue / White / Green
                    R65-Amber / Blue only
    • Connector:4 wires(single color) / 6 wires(dual color)
    • Wire:50cm length cable(screw mounted)
                 3.5M length cable(cigar plug)
    • Material:PC lens / ABS base
    • Dimension:230.2mm(OD) x 47mm(H)
    • Weight:750g(wire) / 1150g(Cigar plug + Magnet base)
