TIR 4LEDs Lighthead
Product Name
TIR 4LEDs Lighthead
Product No
LS-LH43T(L) / LS-LH43T(H)
Product Description
The LS-LH43T series is a compact, surface-mounted warning light which utilizes generation III, and TIR LED technology. Each light is powered by four 3-watt diodes. Meanwhile it has multiple flash patterns which selected by user via a control wire located on the rear of the light.
Features
- Self flasher
- IP67
- Synchronization
- High brightness and no light fade
- Patent design
Approvals
ECE R10 / SAE CLASS 1
Specification
- Voltage：12/24 VDC
- Current：1 Amps Max.
- LED：3W, 4 pcs
- Patterns：25
- Fixed form：Screw-mounted
- Functions：Pattern , Hi/Low power , Synchronization
- Colors：Red / Amber / Blue / White / Green
- Connector：4 wires (red/black/yellow/white)
- Flange：Low(L) . High(H)
- Material：PC lens / Aluminum base

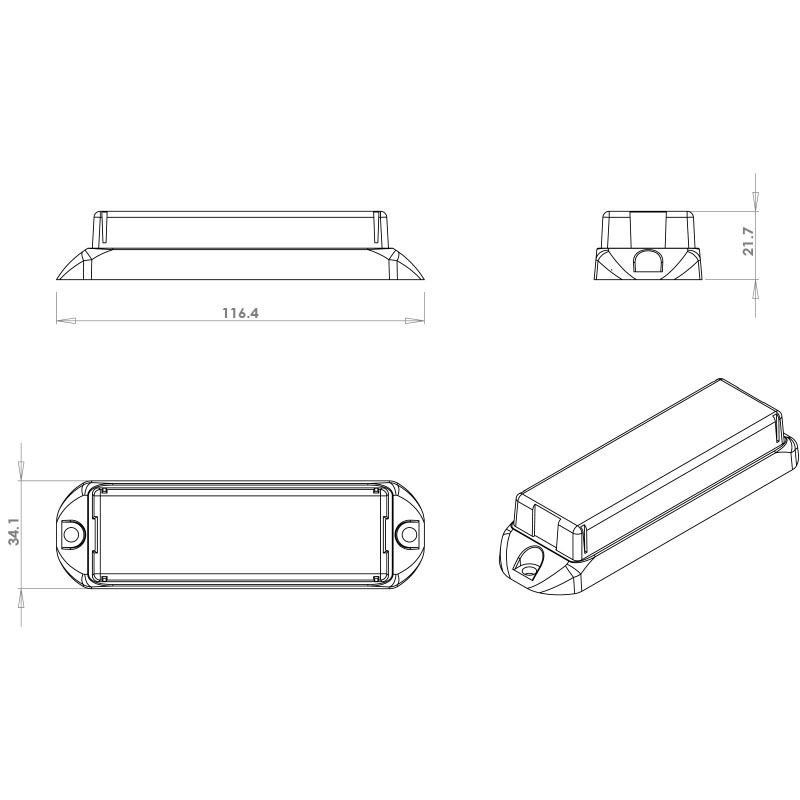

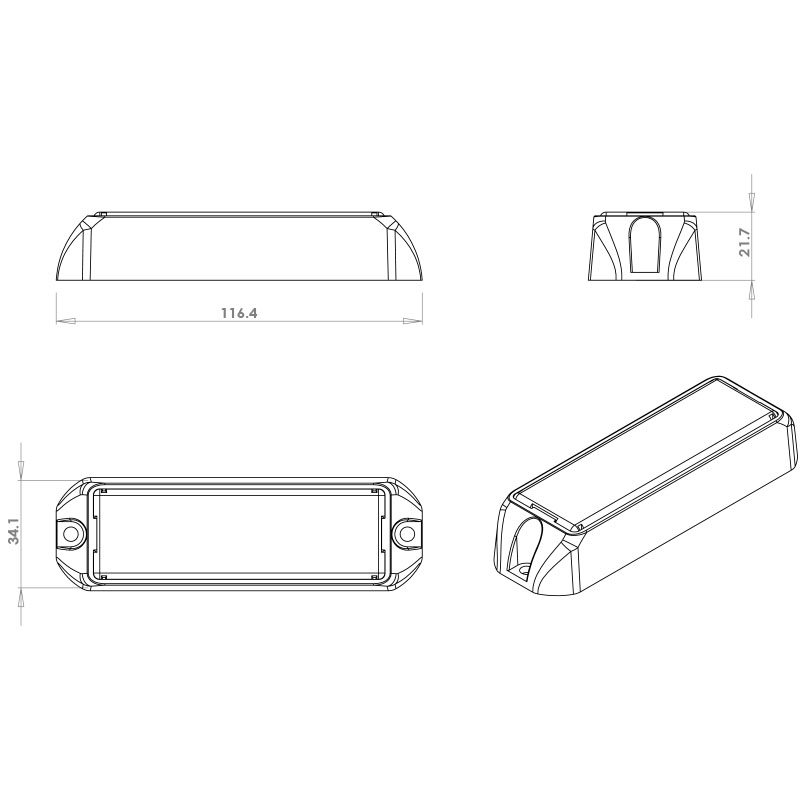

- Dimension：116.4mm(L)x36mm(D)x21.7mm(H)
- Weight：103g(L). 108g(H)
